The METERDI Industrial Borescope MR-25 Series features a 5″ HD touchscreen, 360° articulation, and a robust tungsten-braided probe. Ideal for aviation, automotive, pipeline, and industrial inspections with crystal-clear 1080P imaging and IP67 protection.

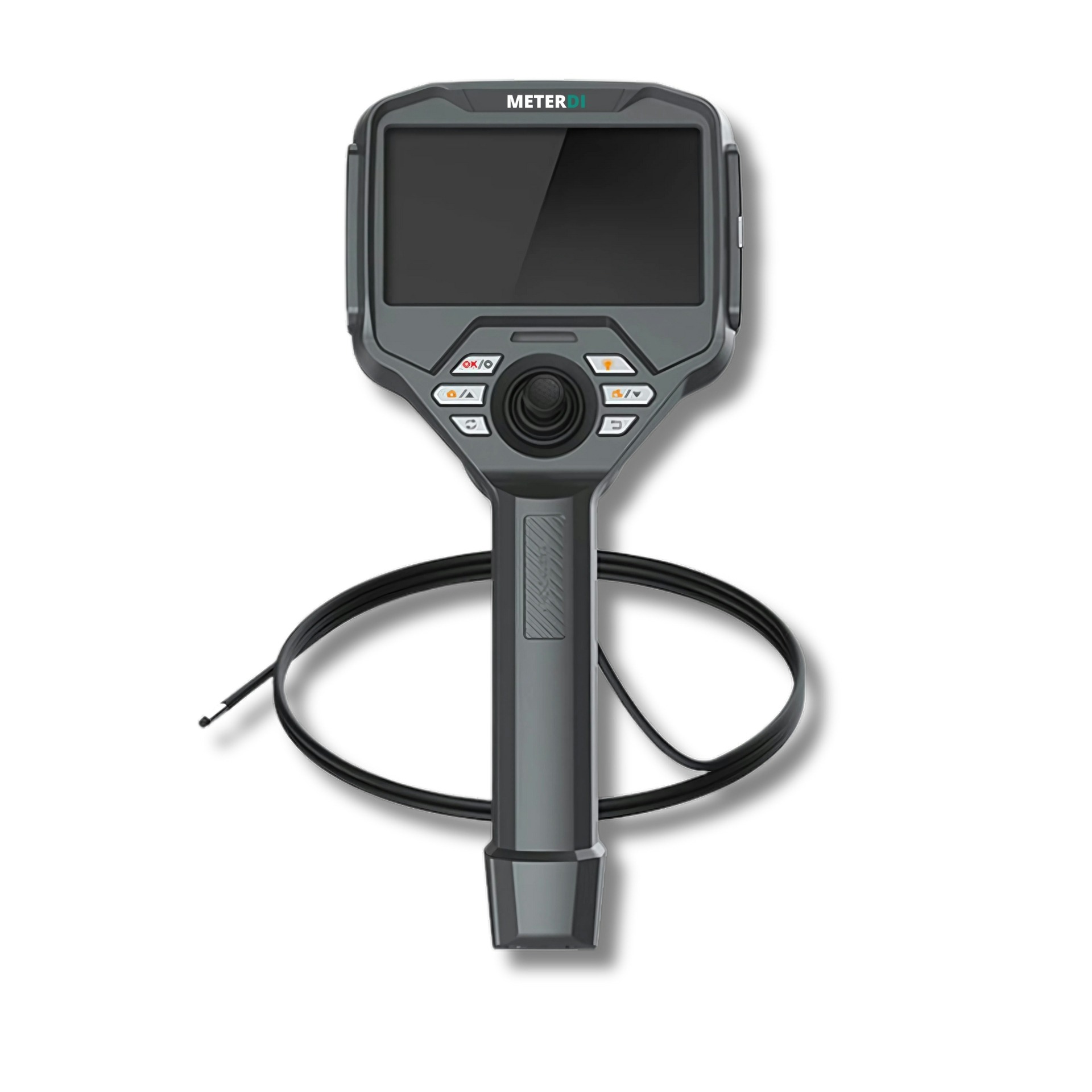

The METERDI Industrial Borescope MR-25 Series is a high-performance, multi-functional inspection tool designed for non-destructive testing (NDT). Equipped with a 5-inch Full HD touch display and 1080P high-definition imaging, it provides clear, real-time visuals for precision inspections. Its 360° joystick-controlled articulation ensures complete maneuverability in confined and complex areas. Built with a quad-layer tungsten-braided insertion tube and an IP67 waterproof rating, the MR-25 Series guarantees durability and reliability even in demanding industrial environments.
The MR-25 Series is widely used across industries for non-destructive testing and preventive maintenance:
Aviation – turbine, engine, and structural inspections.
Automotive – cylinder, gearbox, and engine diagnostics.
Foundry – defect detection in castings and welds.
Pipeline Inspection – blockage detection, corrosion monitoring, and leakage checks.
Manufacturing & Maintenance – quality control and machine servicing.
5-inch Full HD Touch Screen for intuitive operation and crystal-clear visuals.
1080P HD CMOS/CCD Sensor for sharp and detailed imaging.
360° Omnidirectional Articulation controlled via precision joystick.
High-Intensity LED Illumination with multi-level brightness adjustment.
Robust Quad-Layer Tungsten Braided Tube for enhanced wear resistance.
Hot-Swappable Insertion Tube System for flexible probe replacement.
Multiple Probe Options (2.8mm / 4mm / 6mm) with customizable lengths up to 7m.
Wireless Transmission (Wi-Fi) for convenient image and video sharing.
Waterproof Rating: IP67, ensuring reliability in harsh conditions.
Long Battery Life with >4 hours continuous use.
| Category | Parameter | Specification |
| Probe | Probe Diameter | 2.8mm / 4mm / 6mm |
| Insertion Tube Length | 1 – 7 meters (Customizable) | |
| Field of View (FOV) | 120° | |
| Depth of Field (DOF) | 5mm – ∞ | |
| Illumination Method | LED / White Light Fiber Optic | |
| Probe Interchangeability | Multi-Tube Support | |
| Probe Rotation Angle | Omnidirectional 360° | |
| Control Method | Manual Joystick | |
| Image Sensor | CMOS HD Camera | |
| Horizontal Resolution | 720P / 1080P | |
| Waterproof Rating | IP67 | |
| Suitable Applications | Aviation, Foundry, Automotive, Pipeline Inspection | |
| Display & System | Display Size | 5-inch HD LCD Touchscreen |
| Wireless Transmission | Wi-Fi Enabled | |
| Image / Video Format | JPG (Images), MP4 (Videos) | |
| Key Functions | Photo capture, video recording, zoom, image rotation, simulated ruler, and more | |
| Storage | 32GB TF Card (Included), Expandable up to 128GB | |
| Battery Type | 2× 18650 Li-ion Rechargeable Batteries | |
| Operating Time | > 4 Hours Continuous Use | |
| Video Output Interfaces | AV, USB 2.0, HDMI | |
| Brightness Adjustment | Multi-level Brightness Control | |
| Operating Temperature | -20°C to +60°C |
1× METERDI MR-25 Series Industrial Borescope Main Unit
Interchangeable Insertion Tube (as per order)
32GB TF Memory Card
2× Rechargeable 18650 Li-ion Batteries
Battery Charger & USB Cable
Protective Carrying Case
Cleaning Kit & Accessories
User Manual
